Arched window shutters Australia: custom solutions for NSW homes
Chris & Campbell · 7 October 2026
"Can you actually make shutters for a round-top window, or do I just leave it bare?" It is the question we field most often on heritage verandahs in Temora and on new builds around Wagga. The answer is yes: arched window shutters Australia wide are built to a template of your exact opening, never pulled off a shelf. The catch is that the curve usually stays fixed while the panels below it operate.
Can arched window shutters Australia be custom-made for curved openings?
Yes. Every curved opening is built from a template taken off the actual window, then cut and assembled to that shape. Basswood, hardwood and PVC all work, and the arch is typically formed from five to nine jointed sections rather than one bent piece, which is why the head is built as a separate component to the panels below.
The part most homeowners get wrong is assuming the arch opens. On nearly every job we measure and quote across the Riverina, the curved head is fixed and the working panels sit under it in the rectangular section. Louvres inside a curve are all different lengths, so a single tilt rod cannot drive them evenly. Suppliers building arched window shutters Australia wide split the window for that reason, not to cut corners.
Material stability matters more for arched window shutters Australia buyers than for a plain square window, because a curved rail only holds its radius if the timber is seasoned and the joints are tight. A warped straight stile is annoying; a warped arch shows as a gap along the whole curve. Our breakdown of plantation shutter materials in Australia covers how basswood, PVC and aluminium behave in Riverina heat. If the window is part of a period frontage, read the guide to window treatments for heritage homes in NSW before you lock in a profile, and check the opening against the Your Home glazing guidance published by the Australian Government, because the glass and the shutter are one decision, not two.
We cover the details separately in Security shutters Australia: privacy and protection for NSW homes.
We cover the details separately in Acoustic shutters Australia: reduce outside noise in NSW homes.
We cover the details separately in Apartment window shutters Australia: strata approval guide NSW.
There is a full breakdown of this topic in Plantation shutters home value Australia: NSW resale guide 2026.
We cover the details separately in Can landlords install shutters for rental properties Australia? NSW law explained.
We cover the details separately in Hamptons style window treatments Australia: coastal NSW guide.
We cover the details separately in Layering window treatments Australia: curtains and blinds for NSW.
We cover the details separately in Bamboo blinds Australia: natural woven wood window treatments NSW.
We cover the details separately in Bathroom shutters Australia: moisture-resistant window solutions.
Which layouts work best for arched window shutters Australia: half-moons and angled windows
Match the layout to the geometry, not to a catalogue photo. Of the four shapes in the table below, two keep an operable section: a fixed arch over a rectangle takes a sunburst or fixed louvre head with hinged panels below, and a raked gable keeps a hinged or tracked panel under the angled head. A true half-moon fanlight is usually fixed outright. Circular windows are almost always fixed in their entirety too, since there is no square edge anywhere on the shape to hang a panel from.
| Window shape | Usual layout | Operation | Watch out for |
|---|---|---|---|
| Fixed arch over a rectangle | Sunburst or fixed louvre head, panels below | Lower panels hinge or track | Spring points must match left and right |
| Full half-moon fanlight | Sunburst head, single unit | Fixed | No airflow through the unit |
| Circular or porthole | Sunburst or fixed horizontal louvres | Fixed | Access height for measure and fit |
| Raked or angled gable | Angled head, straight panels below | Hinged or tracked below | Rake angle must be templated, never assumed |
A sunburst head is a fixed fan of louvres radiating from a single point at the base of the arch, built to echo the window's curve rather than to move air. Sunburst heads read as period detail and suit the Federation and Victorian frontages around Temora and Wagga. Fixed horizontal louvres read as modern and handle glare a little better, because the blades run parallel to the horizon instead of radiating out from a centre. The layout drives the price of arched window shutters Australia far more than the timber species does, since every extra curved component is hand built. Your Home passive design shading guidance is worth reading alongside the layout choice, because a fixed head is a permanent shading device whether you planned it that way or not.
How arched window shutters Australia are measured and installed accurately

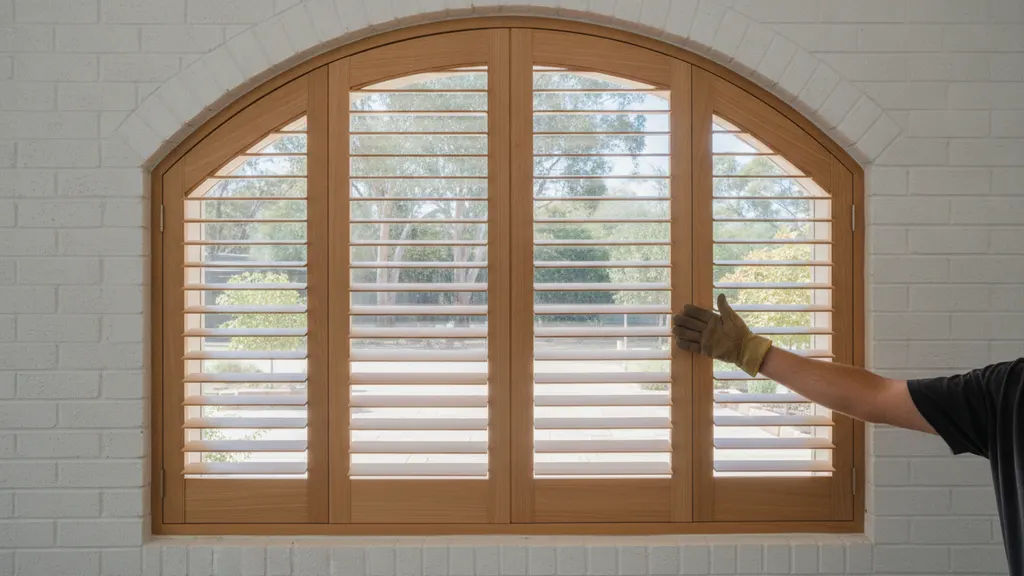

With a physical template, not a tape measure alone. The installer traces the true curve onto cardboard or thin board, marks the centre line and the spring points, then checks reveal depth at three or more points along the curve. A spring point is the exact point where the curve of the arch meets the straight side of the frame, and it is the reference every other measurement is taken from. Old reveals are rarely symmetrical, and the template records exactly how they are not.
Three things decide whether the finished job looks right. First, the spring points: if left and right spring heights differ by even a few millimetres, a symmetrical sunburst will look crooked once it is in. Second, reveal depth, the distance from the wall face back to the window frame, which sets whether the shutter frame can be recess mounted or has to sit on the face. Third, out of square. Heritage homes across the Riverina move with the seasons, and installers building arched window shutters Australia deal with that by shaping the frame to match the opening, rather than forcing the opening to fit a standard frame.
Installation runs in reverse order to a square window. The arch frame goes in first and is packed level off the spring points, then the lower frame is fitted to it, then the panels are hung and the gaps are set. Most of the finishing time, often more than half the day on site, goes into packing, not hanging. Anyone quoting shaped shutter jobs like these without a site measure is guessing, and a guessed curve cannot be trimmed on site the way a square panel can.
Hinged, fixed or tracked panels: what works for arched window shutters Australia
Hinged panels suit the straight section under an arch and anything you need to open for cleaning or airflow. Tracked panels suit wide raked openings, generally anything wider than about 1.2 metres, where a hinge would swing into furniture. Fixed panels suit the curve itself, the half-moon and the porthole, where there is nothing square to latch against.
There is a fourth option people forget: leave the arch bare and treat only the rectangle below it. On a tall gable window the curve often sits above the sight line, so covering it buys privacy you do not need and costs light you do. Where the glass is high and hard to reach, motorised operation on the lower panels is worth pricing, and our guide to motorised shutters and smart home control in NSW sets out the trade-offs. For arched window shutters Australia homeowners fit in stairwells and double-height voids, the reach question usually settles the layout before aesthetics get a say.
We cover the details separately in French door shutters Australia: NSW guide to sliding and hinged doors.
Design and light-control trade-offs with arched window shutters Australia
A fixed arch cannot be adjusted, so it is always doing something. In summer that helps: the midday sun sits near 78 degrees above the horizon at this latitude, and the fixed head blocks the worst of it. In winter, when the sun drops to around 32 degrees, it passes under the arch and into the room, which is the behaviour you want. The compromise is low afternoon glare from the west.
Solar geometry does most of the work. At roughly 35 degrees south, which covers Wagga Wagga, Temora and Griffith, the noon sun sits near 78 degrees above the horizon at the summer solstice and near 32 degrees at the winter solstice, the seasonal swing that Your Home orientation and solar access guidance is built around. Seasonal temperature patterns for inland NSW sit in the Bureau of Meteorology climate averages, and Australian Government energy.gov.au guidance on windows and coverings explains how much heat moves through glass in both directions. CSIRO building energy research makes the same point about shading being a seasonal tool rather than a permanent blocker.
The light control trade-off is straightforward for anyone choosing arched window shutters Australia: you trade a small amount of adjustability at the top of the window for a cleaner line and permanent summer shade. If the same room has high glazing overhead, the same logic applies to skylight blinds and managing heat and glare in NSW homes.
Glazing rules and material checks before you order specialty shutters
Shutters do not change your glazing obligations, and at least two separate standards govern the glass behind an arch rather than the shutter itself. The National Construction Code 2022 includes requirements for safety glazing in specified hazardous locations, including some windows and glazed areas near doors, and Standards Australia AS 1288:2021 sets the companion rules for how that glass is selected and installed. If your arched window sits low, beside a door or in a wet area, confirm the glass before the shutter order is placed.
The Australian Building Codes Board explains that glazing in hazardous locations may require safety glass or permanent marking, depending on the installation. You can confirm the current rules through the Australian Building Codes Board and the current edition through Standards Australia, publisher of AS 1288:2021. For anyone ordering shaped shutters as part of a renovation, the sequence matters: glazing first, shutters second, because replacing a pane behind a fitted arch means pulling the frame back out.
On material, choose stability over sticker price. PVC and aluminium shrug off moisture; seasoned basswood holds a curve and takes paint well. Sealing around the reveal is worth doing properly, and Sustainability Victoria draught sealing guidance covers the principle even though the climate differs from the Riverina. Budget planning for arched window shutters Australia projects should assume the shaped head is priced separately from the panels, and our guide to plantation shutters cost in Australia for NSW homes in 2026 explains how quotes are usually itemised.
Frequently asked questions
Can you put plantation shutters on an arched window?
Yes, and it is a standard custom order rather than a special project. The maker works from a physical template of the opening, so the frame follows the real curve of your window instead of a nominal size. In almost every case the arch is built as a fixed sunburst or a fixed louvre head, with operable panels below it in the straight part of the window. Your Home, the Australian Government design guide, treats glazing and shading as one decision, which is the right way to think about it: the fixed head still blocks high summer sun even though it does not tilt.
Do the shutters on an arch open, or are they fixed in place?
The curved head is nearly always fixed. Louvres inside a curve are all different lengths, so one tilt rod cannot move them evenly, and a hinged curved panel has nowhere square to latch. The rectangular section underneath takes hinged or tracked panels and operates normally. On a full half-moon or a circular porthole there is no straight section at all, so the whole unit is usually fixed with the louvres set at a chosen angle. Pick that angle for the view and the sun path, because you are locking it in. Bureau of Meteorology climate data for inland NSW is a sensible input to that call.
How much more do custom shape shutters cost than square ones?
Expect a premium over a rectangular window of the same area, because the shaped frame is templated, cut and assembled by hand rather than run through standard tooling. We will not put a figure on it here, since the honest answer depends on the shape, the material and the access. Consumer research published by Canstar Blue on window furnishings is a reasonable place to understand the general market before you collect quotes. The practical move is to ask for an itemised written quote that separates the shaped head from the operable panels, so you can see exactly what the shape is adding.
What about round window shutters for a porthole or circular window?
Round window shutters are made the same way as an arch: template first, then a frame built to that circle. Because there is no straight edge, almost all circular units are fixed, with either a sunburst layout radiating from the centre or horizontal louvres set at a fixed tilt. Sunbursts suit heritage and Federation frontages; fixed horizontal louvres suit a modern facade and handle glare a little better. Access matters more than the shape, since a porthole often sits high in a gable and needs a ladder or a lift for both the measure and the fit. Standards Australia AS 1288:2021 still governs the glass behind it.
Do I need safety glass behind shutters on a low arched window?
Possibly, and it depends on where the glazing sits rather than on the shutter. The National Construction Code 2022 includes requirements for safety glazing in specified hazardous locations, including some windows and glazed areas near doors, and Standards Australia AS 1288:2021 sets how glass is selected and installed in buildings. The Australian Building Codes Board explains that glazing in hazardous locations may require safety glass or permanent marking, depending on the installation. Shutters do not change that obligation and are not a substitute for compliant glass. If you are renovating a heritage window, confirm the glazing with your builder before the shutters are ordered.
How long do arched plantation shutters take to make?
Longer than a square window, and the gap sits in the templating and the hand assembly rather than the finish. The template has to be made on site, checked against the opening, then sent with the order, so a site visit cannot be skipped. We give a lead time in writing at the measure rather than a guess over the phone, because an out-of-square heritage reveal adds steps a new build does not. Your Home, the Australian Government design guide, is worth reading while you wait, since shading decisions made early cost far less than changes made after installation.
